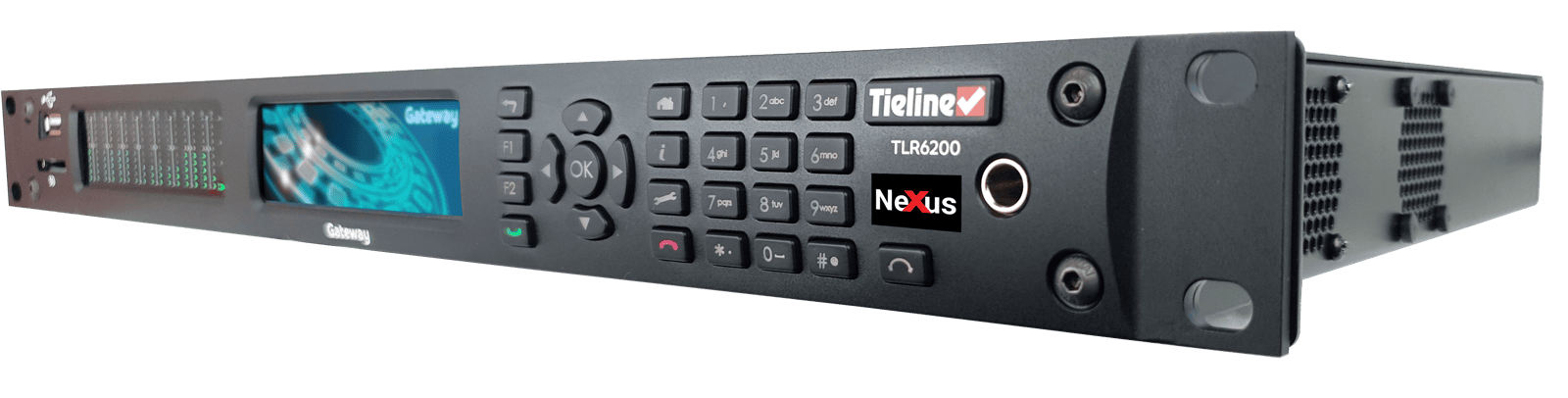

Gateway Nexus

High Density DSP-based IP Audio Codec

32 Channels of Deterministic, Low Latency IP Audio

The Gateway Nexus is a powerful and flexible 32-channel, high-density AoIP codec delivering deterministic, low-latency multichannel audio transport using dedicated and reliable hardware. The Nexus speaks the language of AES67, ST 2110-30, ST 2022-7, RAVENNA, Livewire+, NMOS, Ember+, AES3 and analog I/O as standard. An optional Dante card can also be installed at purchase.

Watch Video
More Info
Receive updates on this product

watch the video

In this video, Jacob Daniluck outlines the key features of the high-density Gateway Nexus and explains why it’s ideal for a wide range of deployments.

Overview

The Gateway Nexus is ideal for a wide range of deployments and stands out as a compact, powerful and cost-effective alternative to virtualized codec and server-based systems. It can be installed at the broadcast plant, or in hosted data center environments. It is engineered to natively support AES67, ST2110-30, ST2022-7, RAVENNA, Livewire+, NMOS IS-04, IS-05, IS-07 and Ember+. Additionally, a Dante card can be installed at purchase. Compliance with these standards ensures seamless integration into IP-based audio with vendors supporting these protocols.

Applications

Gateway Nexus connects over any IP network and is ideal for:

  • Hosted or data center environments requiring high channel density and low latency connections for live programming and communications applications
  • Audio contribution and managing multiple remotes
  • Network syndication of programming
  • Multiple Studio-to-Transmitter Links
  • Multi-channel links to remote studios (inter-studio links)

Features at a Glance

Analog, AES3

Support for AES67, plus AES3 (AES/EBU)
and analog I/O options.

HTTP Streaming

Support for Icecast or Shoutcast HTTP streaming

SIP and IP Intercoms

SIP EBU Tech 3326, 3368, and EBU Tech 3347

Dual AoIP Ports

Stream AoIP from dual ports

SD card

SD card slot for firmware upgrades, storage and SDIO

Alarms

Silence Detection, PSU Failure, Lost connection, Temperature, AES Input, AES Reference, SNMP and more

Dual Internal Power Supplies

Dual power supplies provide backup if one fails

Dual Ethernet Ports

Connect using different Telcos for diversity using SmartStream PLUS redundant streaming

Module Compatible*

Module slot for future hardware innovations

Multi-Unicast

Support for multiple simultaneous multi-unicasts over compatible IP networks to up to 80 endpoints

Simultaneous Multicast

Support for multiple simultaneous multicasts over compatible IP networks to unlimited endpoints

Phase-locked streaming mode

Stream 4, 6 and 8 digital channels in phase-locked mode to deliver live content in both stereo and surround sound formats (LC-AAC only)

Internal SSD Storage

Internal Storage supports record, store and forward use cases for network syndication applications*

Expanded Backup Options

Multiple levels of power, audio and network redundancy. The codec features dual Gigabit Ethernet ports, dual internal power supplies, automated audio silence detection and IP network backup solutions to ensure you’re always on the air.

Learn More on Redundancy Options

AoIP Options

AES67 Ready

Native support out-of-the-box so forget hardware card upgrades, just connect and go!

Purchase with an optional Dante card for interoperability with the Dante networks
Note: Optional at time of Purchase

Native support lets you connect directly to Livewire+ AES67 networks and exchange audio streams.

Native support for RAVENNA, an open technology for stream discovery and advertisement.

Supports AMWA NMOS IS-04 and IS-05 for discovery, registration, and control, and NMOS IS-07 Notifications for ST 2110 AoIP streaming, delivering a new level of interoperability and control with networked equipment throughout the broadcast plant.

The Ember+ control protocol is supported

ST 2110-30 & ST 2022-7

SMPTE ST 2110-30 and ST 2022-7 compliant out-of-the-box

High Density Deployments
with Deterministic Performance

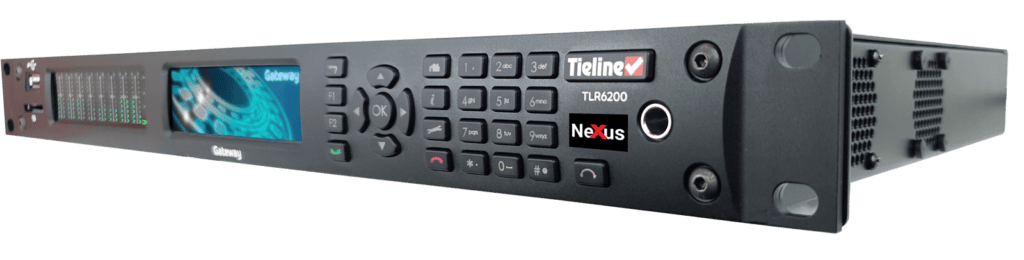

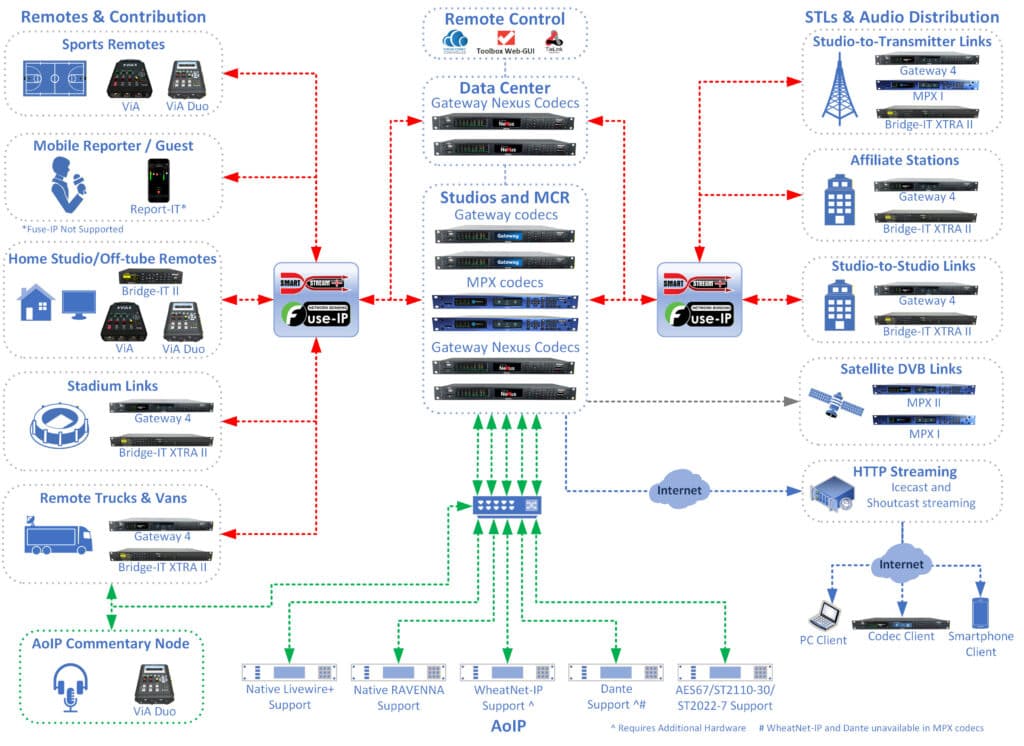

As the broadcast industry shifts towards centralized and remote production models for live broadcast applications, the codec’s DSP-based platform allows broadcasters to upscale infrastructure efficiently. The Nexus is purpose-built for hosted data center deployments, delivering 32 channels of full-duplex high-density AoIP audio. Unlike virtual codec solutions, it provides fully deterministic performance that is predictable, low-latency, and fully hardware-based. The Gateway Nexus will expand your encoding capabilities by providing a centralized hub for all your AoIP streams.

Redundancy and Remote Control

Maintain rock solid connections with multiple layers of redundancy and backup including:

  • Dual internal power supplies, dual Ethernet ports and dual AoIP ports

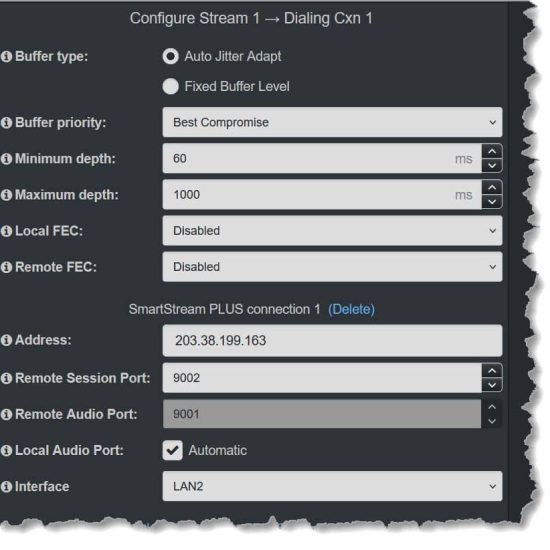

  • SmartStream PLUS hitless packet switching
  • Fuse-IP data aggregation
  • Alternative connection backup
  • Audio file backup
  • Icecast streaming client
  • FEC and RIST

Gateway Nexus is fully configurable through an embedded HTML5 Toolbox Web-GUI interface and is also fully controllable using Tieline’s Cloud Codec Controller. It also supports monitoring and alerts using SNMP and automated alarm notifications using Toolbox software.

SS+

Interoperability

Advanced features and support for a wide range of protocols combine to deliver consistent latency, predictable performance and operational simplicity, making it ideal for state-of-the-art broadcast networks.

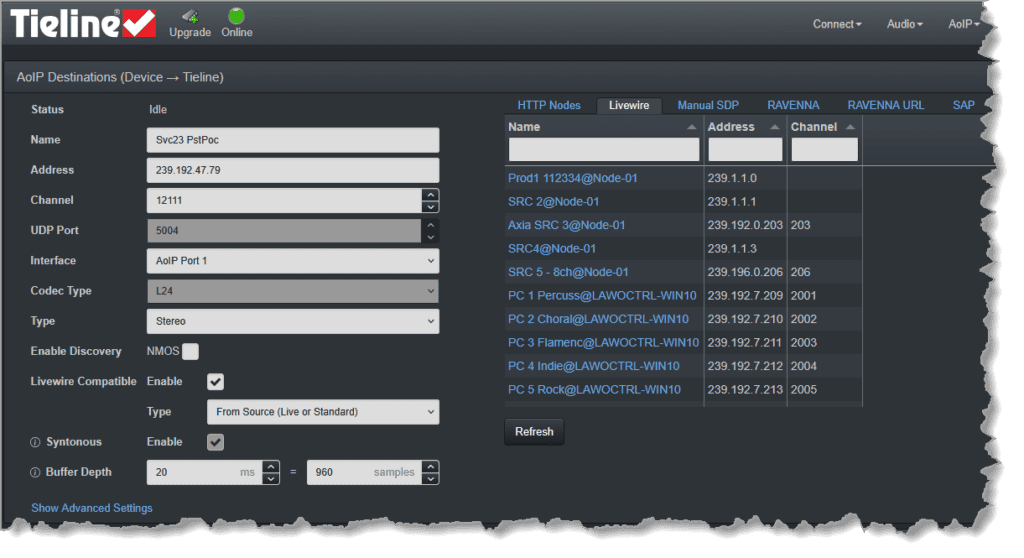

The Gateway Nexus is interoperable with all Tieline IP codecs and it is also compatible over SIP with all EBU N/ACIP Tech 3326, 3347 and 3368 compliant codecs and devices. The codec is also fully AES67, ST 2110-30, ST 2022-7, Livewire+ and RAVENNA compliant for AoIP streaming. It also supports AES3 and analog I/O as standard. The optional Dante card delivers seamless operation using Dante Controller. It is also AMWA NMOS IS-04, IS-05 and IS-07 compliant for AoIP discovery, registration, connection management, and notifi cations, simplifying setup and confi guration of networked AoIP devices and systems. The Ember+ control protocol is also supported.

Flexible Audio Distribution

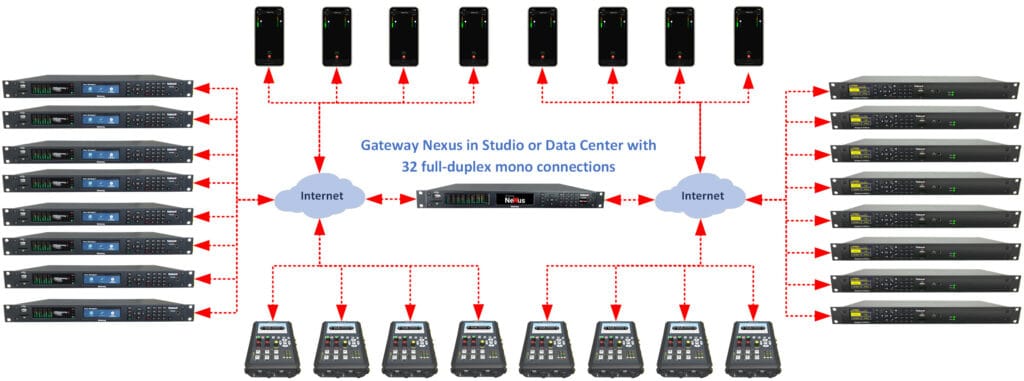

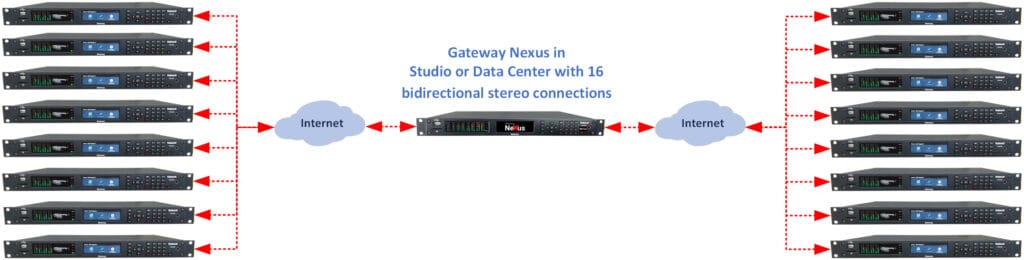

The Gateway supports 32 mono or 16 stereo full-duplex audio streams. Gateway also supports flexible multi-unicasting and multicasting configurations for audio distribution.

  • Stream up to 32 different multi-unicast audio streams to up to 80 endpoints in total.
  • Stream up to 32 different multicast audio streams to unlimited endpoints over compatible networks

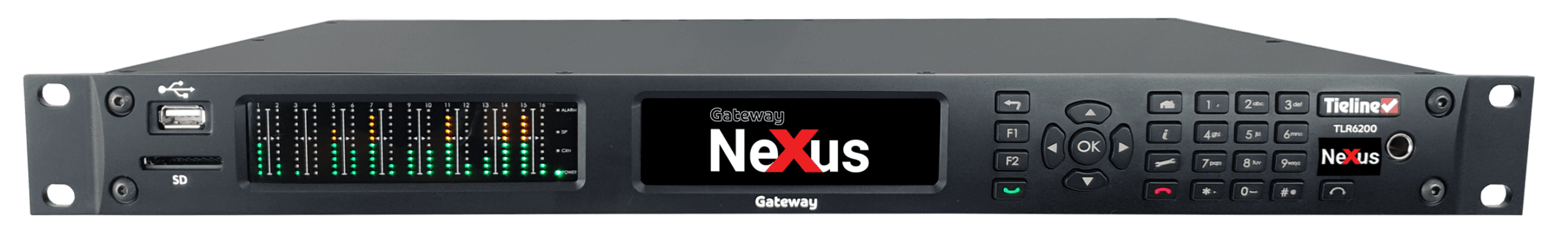

Specifications

General

  • Dimensions: 19” x 1 3/4” x 11 13/16” [482mm (W) x 44.45mm (H) x 300mm (D)] excluding rear connectors
  • Weight: 4 Kg /8 lb 13.100 oz
  • Power: Dual AC 90-240V IEC power inlets; 2A 50-60 Hz
  • Operating temp: 0°C to 45°C (32°F to 113°F)
  • 10% ≥ RH ≤ 90% (0 to 45°C/32°F to 113°F), non-condensing

Algorithms

  • IP Algorithms: Tieline Music, Tieline MusicPLUS, Opus, G.711, G.722, MPEG Layer 2, MPEG Layer-3 LC-AAC, MPEG audio technologies licensed by Fraunhofer IIS (http://www.iis.fraunhofer.de/audio)
  • IP (uncompressed): Linear PCM16/24 bit 32kHz, 48kHz

audio

connectivity

  • Dual Gigabit (10/100/1000) Ethernet ports support automatic switching for redundancy
  • Dual AoIP ports for AES67, SMPTE ST 2110-30, ST 2022-7, Livewire+ and RAVENNA AoIP streaming
  • Optional Dante streaming via AoIP1
  • Automated failover to backup connections.
  • Support for up to 4 output audio source fail over options
  • SmartStream PLUS dual redundant IP streaming
  • Fuse-IP network bonding (data aggregation)
  • SIP (SDP) compliant with EBU N/ACIP Tech 3326 and 3368 for interoperability with other codecs
  • I3P EBU Tech 3347 integration for Intercom compatibility over IP
  • Deterministic SIP answering and call routing: Configure up to 32 SIP accounts and connect up to 2 SIP interfaces
  • Selectable fixed or automatic jitter buffer: 5 automated settings available to manage network connectivity and avoid dropouts (includes configurable min and max buffer settings).
  • Configurable Forward Error Correction (FEC)
  • Highly advanced error concealment strategies
  • Real-time IP connection packet statistics
  • Real-time IP link quality displayed.
  • Support for Line Hunt dialing/answering and caller IDs using Tieline IP
  • Support for USB LAN and USB Wi-Fi for Control

operation

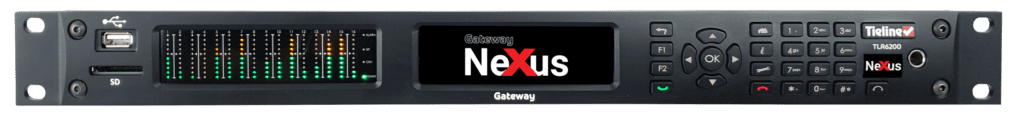

  • Full hardware front panel interface including navigation, LCD display, PPM meters and dialing key pad
  • User-friendly HTML5 Toolbox Web-GUI enables codec configuration and control remotely over WANs
  • AES67 Web-GUI for configuration of AES67, ST 2110-30, ST 2022-7, Livewire+ and RAVENNA streams over an AES67 LAN
  • HTTP Icecast or Shoutcast streaming
  • Toolbox Scheduler supports loading/unloading, connecting and disconnecting programs
  • Use the Cloud Codec Controller to configure & manage your entire codec network remotely
  • Auto switching, dual internal AC power supplies
  • IPv4 & IPv6 compatible and ready
  • Asymmetric algorithmic encode/decode
  • Integrated alarm management including automatic silence detection
  • Low latency in-band RS-232 aux data channel
  • Configurable software rules engine via web-GUI for Control Port (16 GPIOs), plus WheatNet-IP LIO compatibility.
  • Upgrade firmware from SD card
  • Automated firmware upgrade notifications via Web-GUI
  • Support for multiple languages: English, Spanish, Portuguese and French
  • Backward compatible with all Tieline IP codecs

security

  • User name and password protection of codec and Toolbox HTML5 Web-GUI
  • Support for SSL Security Certificate installation
  • SIP allow lists and deny lists allow filtering of SIP URIs and User Agents.
  • Configuration of non-standard ports
  • Firewall settings to enable or disable a range of firewall-related network services, or limit ping to only work in a local subnet
  • Implementation of CSRF protection (Cross-Site Request Forgery)
  • Cloud Codec Controller supports admin and user level access to codecs with password protection

* Denotes future release
